Model | DMR 50 Base Single |
Capacity | 9 Ton / h |
Filling Range | 25 – 50 Kg / Bag |
Power Consumption | 8 Kw / h |
Filling Throat Dia. | 32 cm |
Required Power | 380 V – 3 Phase |
Sealing Band | 300 cm |
Chasis Dimension | 300x140x310 cm |
Transport Dimension | 300x130x250 cm |

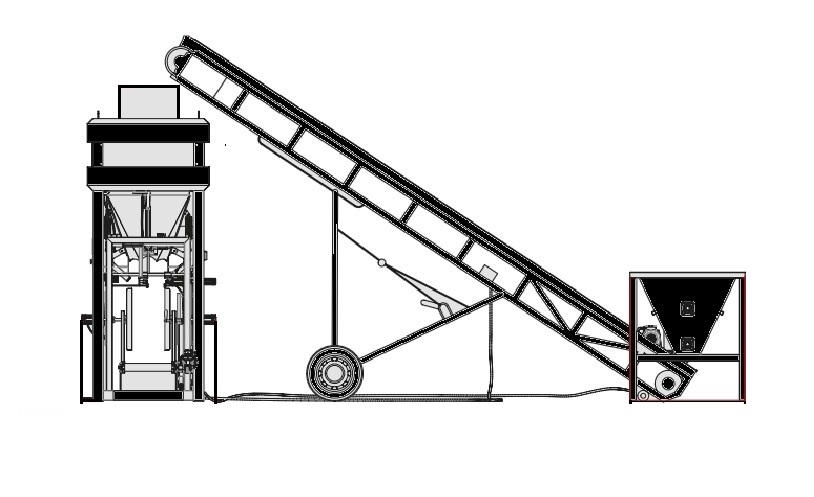

Best way to retain the product’s freshness and preserve its quality by packing harvested materials in a range of 25-50 kg bags. You could also pack other industrial products such as manure, fertilizer, bolt etc. Our machines not only provide a significant contribution in feeding the animals by preserving materials’ longtime freshness and productivity to the livestock sector but also decrease the workload of industrial sectors. The machine has integrated bunker, conveyor and packing unit. You can use the closing with two system. System 1 has vacuum + press + hot sealing. System 2 has vacuum + clipping + sewing. Capacities can change up to materials to pack, target weight and closing system.
Materials can be load into the bunker by using tractor without any necessary of other heavy equipments. Folding sidewalls up to the road and working position. Synchronize working with machine. Automatic control and speed adjustable.
Direct transfer of materials from back bunker to top bunker. Synchronize working with back bunker and top bunker. Fast material circulation. Automatic control and adjustable conveyor speed.
Provide regular feeding and and filling of material. Prevent blockages and bag damages. Accurate and sensitive weighing. Synchronize working with back bunker and vertical conveyor.
Provides filling slowly the materials and minimizing the bag damage. Filling diameter is 28 – 32 cm. When the bag is ready for filling bag holders close and filling start automatically by touching the sensor. When the bag reached target weight bag holders open automatically.
Provide smoothly transferring the bag to the vacuum, sewing and pressing unit. Easy transfer without any human power. Control by foot pedal.
Thanks to vacuum pipe integrated to the the machine, materials remain as fresh as the first day of packing. If no need the vacuum, vacuum options can close easily by control board.
Provide more product with less space. Minimum 300 – 350 kg pressure. Well shaped and tight bags. Easy stock. Adjustable press time.
Provide strong and safe sealing. Easy use with foot pedal. 3 line resistant. Adjustable heating and timing.
Tight clipping by pneumatic system. Easy and fast operation. Optimum result for big capacities.

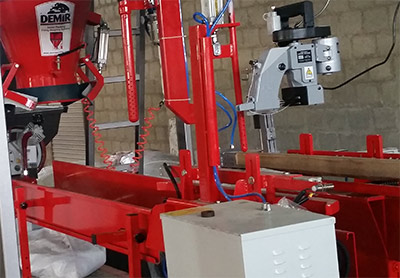

Bag sewing in 4 – 7 seconds. Daily 4000 – 5000 bags sewing capacity. Comfortable and easy use with balancer. Manuel or automatic sewing.
Easy use. Control and interfere all units. Remote control system. Multi language options.
