Model | DMR 165 | DMR 210 | DMR 240 |
Number of Disc | 4 Pcs | 5 Pcs | 6 Pcs |
Number of Knives | 8 Pcs | 10 Pcs | 12 Pcs |
Working Width | 165 cm | 210 cm | 240 cm |
Required Power | 55 Hp | 55 Hp | 65 Hp |
PTO | 540 Rpm | 540 Rpm | 540 Rpm |
Length | 123 cm | 123 cm | 123 cm |
Width | 338 cm | 380 cm | 414 cm |
Width (Transport) | 164 cm | 164 cm | 164 cm |
Height | 100 cm | 100 cm | 100 cm |
Height (Transport) | 213 cm | 250 cm | 290 cm |
Weight | 675 kg | 734 kg | 800 kg |

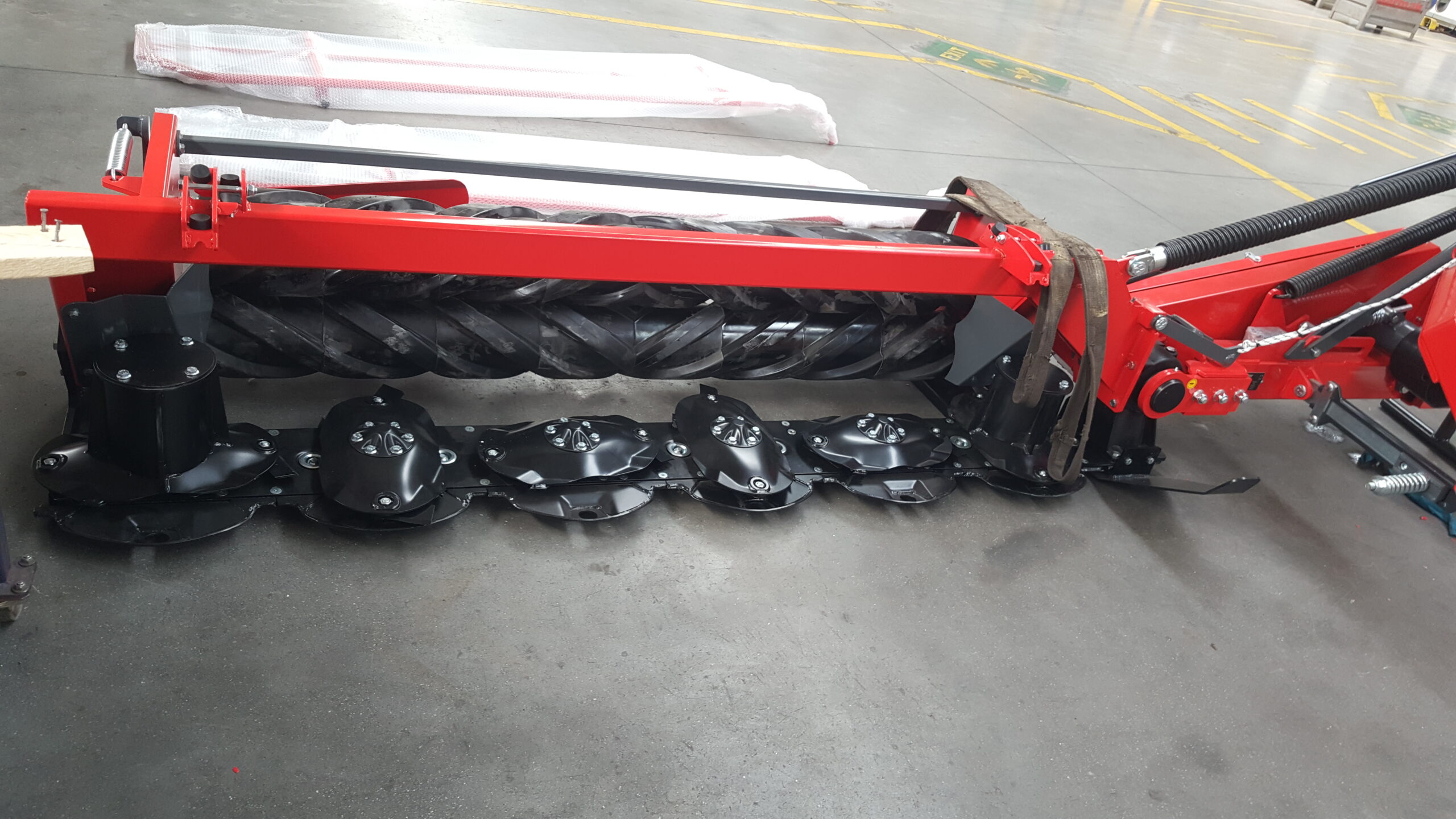

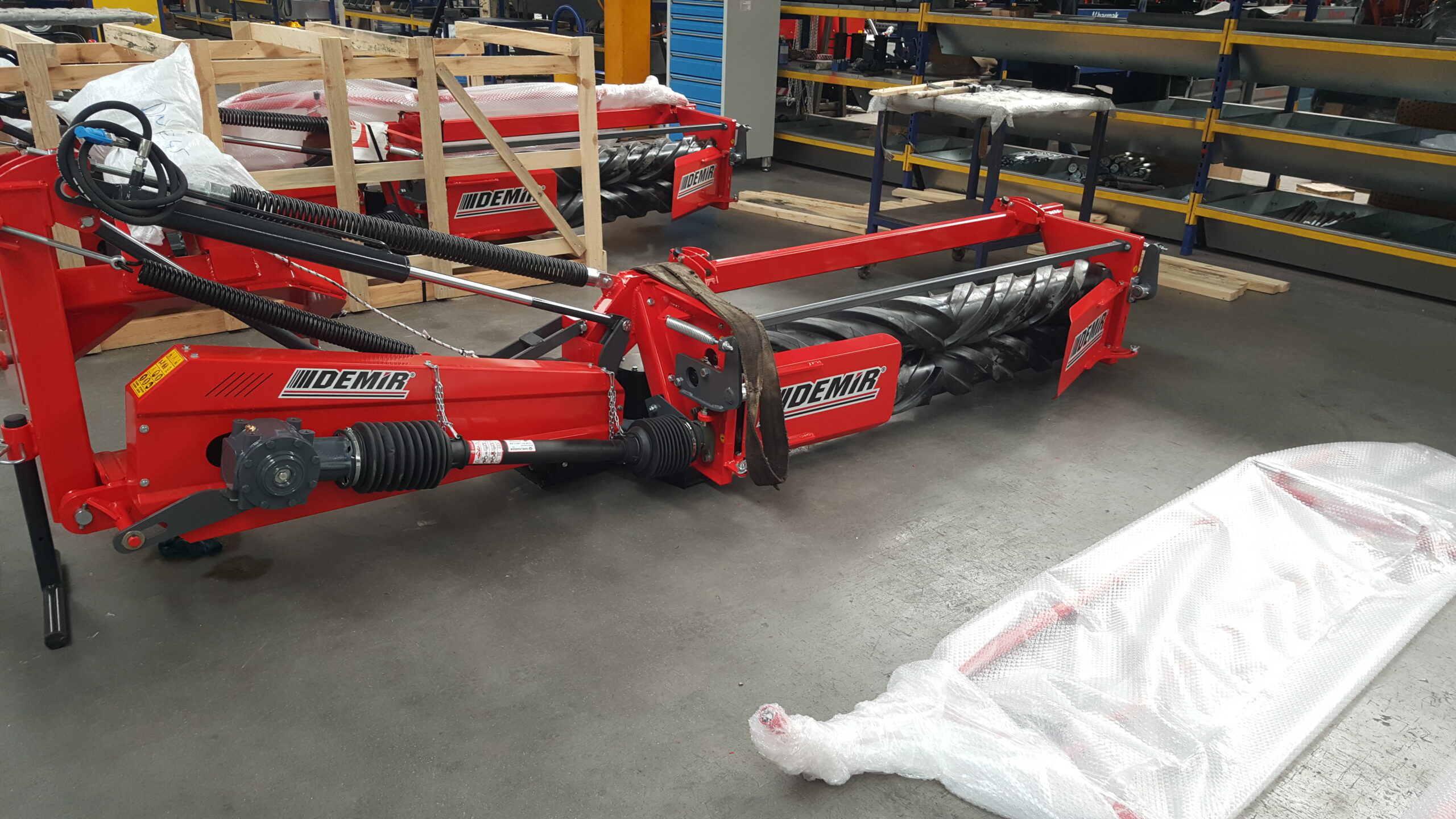

The DMR 205 – DMR 240 mechanism Compression-disc pasture and alfalfa mower is divided into two compressed discs. It raises up, with the effect of air flow created by oval-type two-blade discs when they rotate, the plants into the ground, and it does not leave uncut crop which in return provides high efficiency. In order to prevent possible damages to be caused by hitting hard and big objects, a safety mechanism is provided. The compressed disc group equalizes drying time of the leaf and stem through squeezing out the sap of the crop with the help of helical rubber compressing system in order to help the cut crop wither and dry faster. Through taking out crop’s sap without wasting its nutritional value, the machine helps the crop to be collected from the field in a short time without dropping leaves.
