Model | DMR HFM 4 | DMR HFM 5 | DMR HFM 6 | DMR HFM 8 | DMR HFM 10 | DMR HFM 12 | DMR HFM 16 |
Capacity | 4 m³ | 5 m³ | 6 m³ | 8 m³ | 10 m³ | 12 m³ | 16 m³ |
Number of Knives | 48 Pcs | 52 Pcs | 68 Pcs | 68 Pcs | 72 Pcs | 88 Pcs | 116 Pcs |
Number of Auger | 2 Pcs | 2 Pcs | 2 Pcs | 2 Pcs | 2 Pcs | 2 Pcs | 2 Pcs |
Discharge Door | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Back Loader | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
PTO | 540 Rpm | 540 Rpm | 540 Rpm | 540 Rpm | 540 Rpm | 540 Rpm | 540 Rpm |
Required Power | 45 Hp | 50 Hp | 55 Hp | 70 Hp | 80 Hp | 85 Hp | 110 Hp |
Bottom Sheet Thickness | 8 mm | 8 mm | 10 mm | 10 mm | 10 mm | 10 mm | 12 mm |
Side Sheet Thickness | 4 mm | 4 mm | 5 mm | 5 mm | 5 mm | 5 mm | 6 mm |
Length | 4200 mm | 4450 mm | 4800 mm | 5400 mm | 5700 mm | 6000 mm | 7500 mm |
Width | 2150 mm | 2150 mm | 2150 mm | 2350 mm | 2450 mm | 2650 mm | 2650 mm |
Height | 2000 mm | 2200 mm | 2250 mm | 2500 mm | 2500 mm | 2700 mm | 2700 mm |
Weight | 1900 kg | 1950 kg | 2120 kg | 3200 kg | 3900 kg | 4200 kg | 5900 kg |

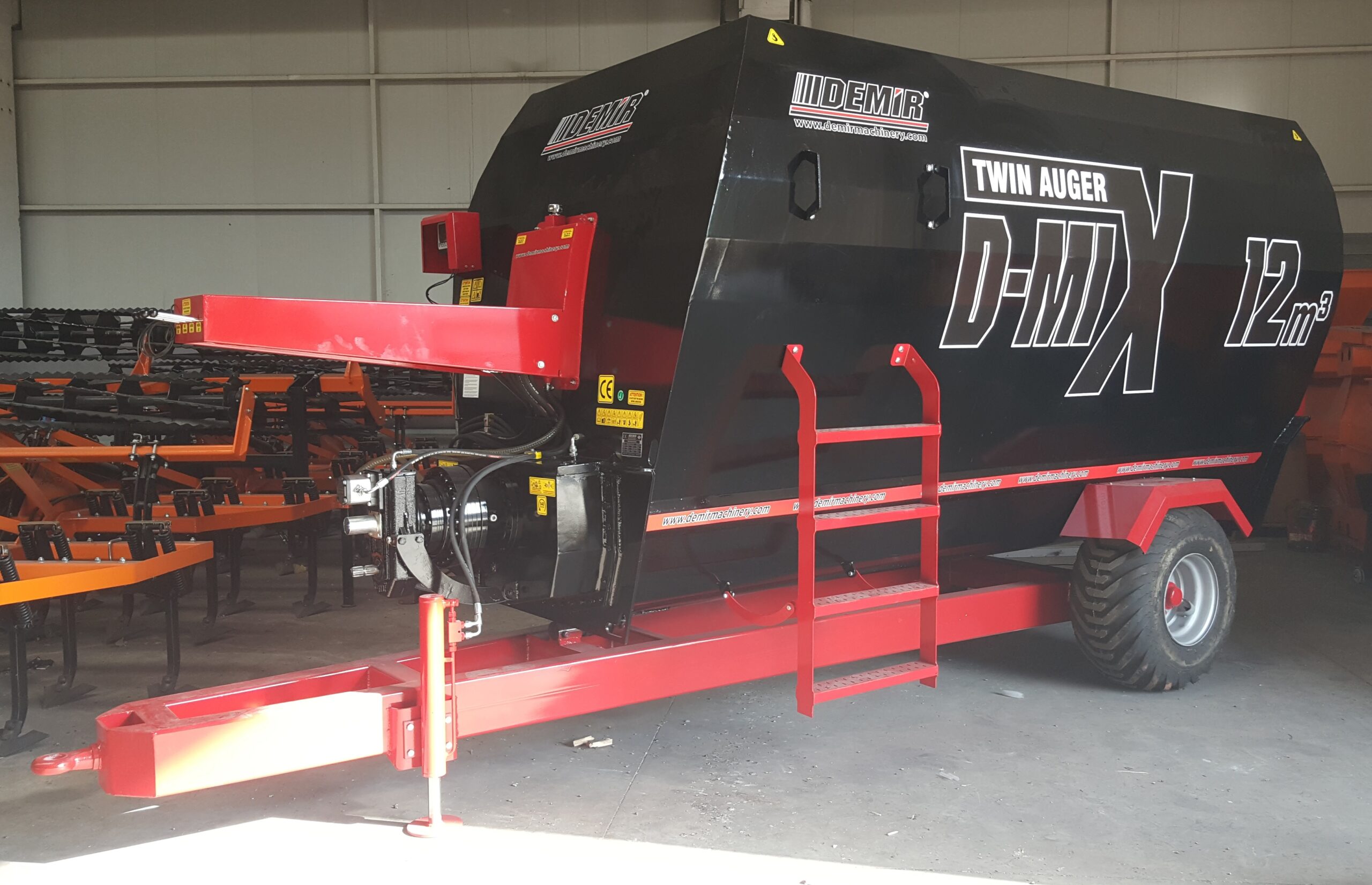

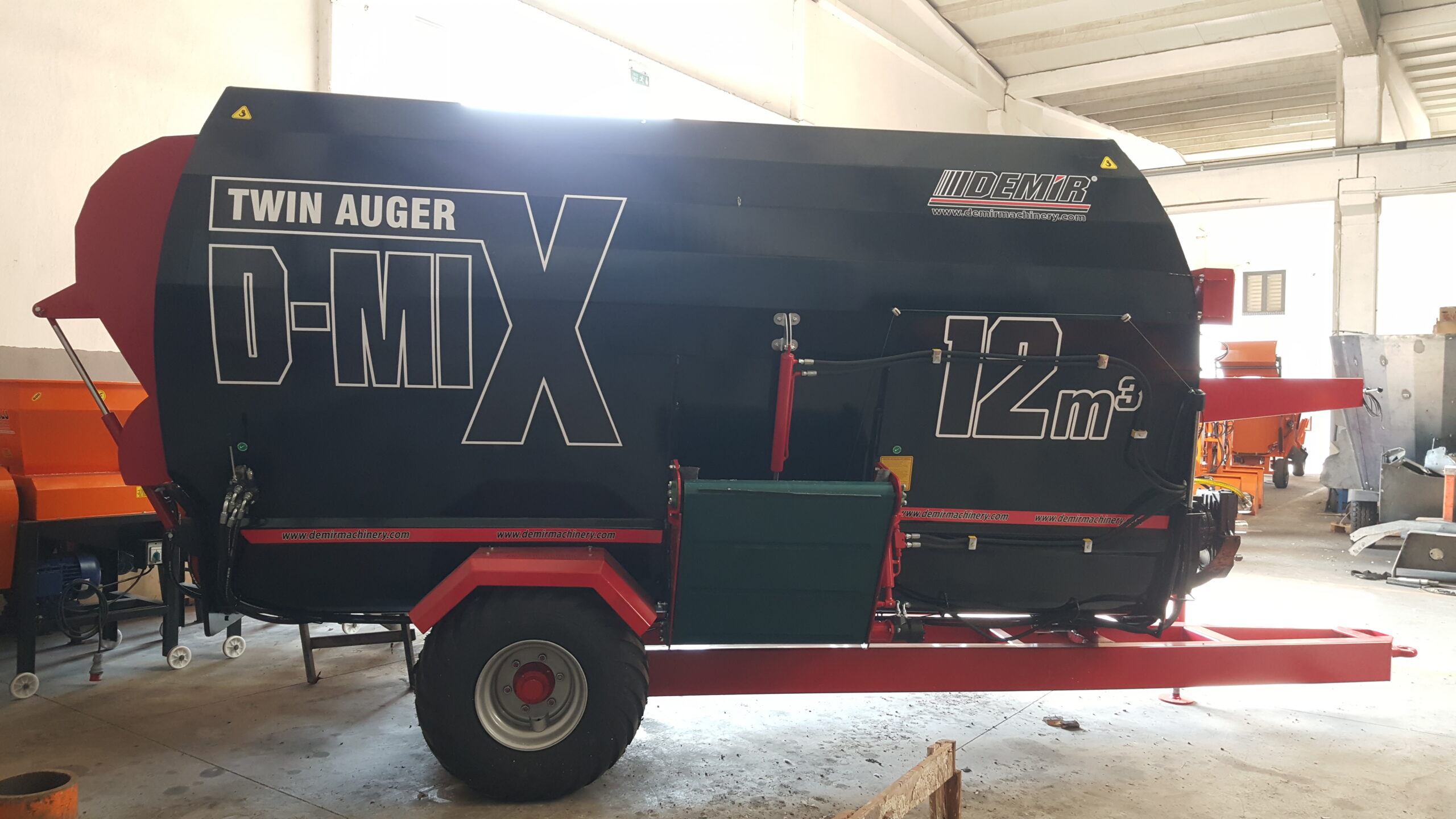

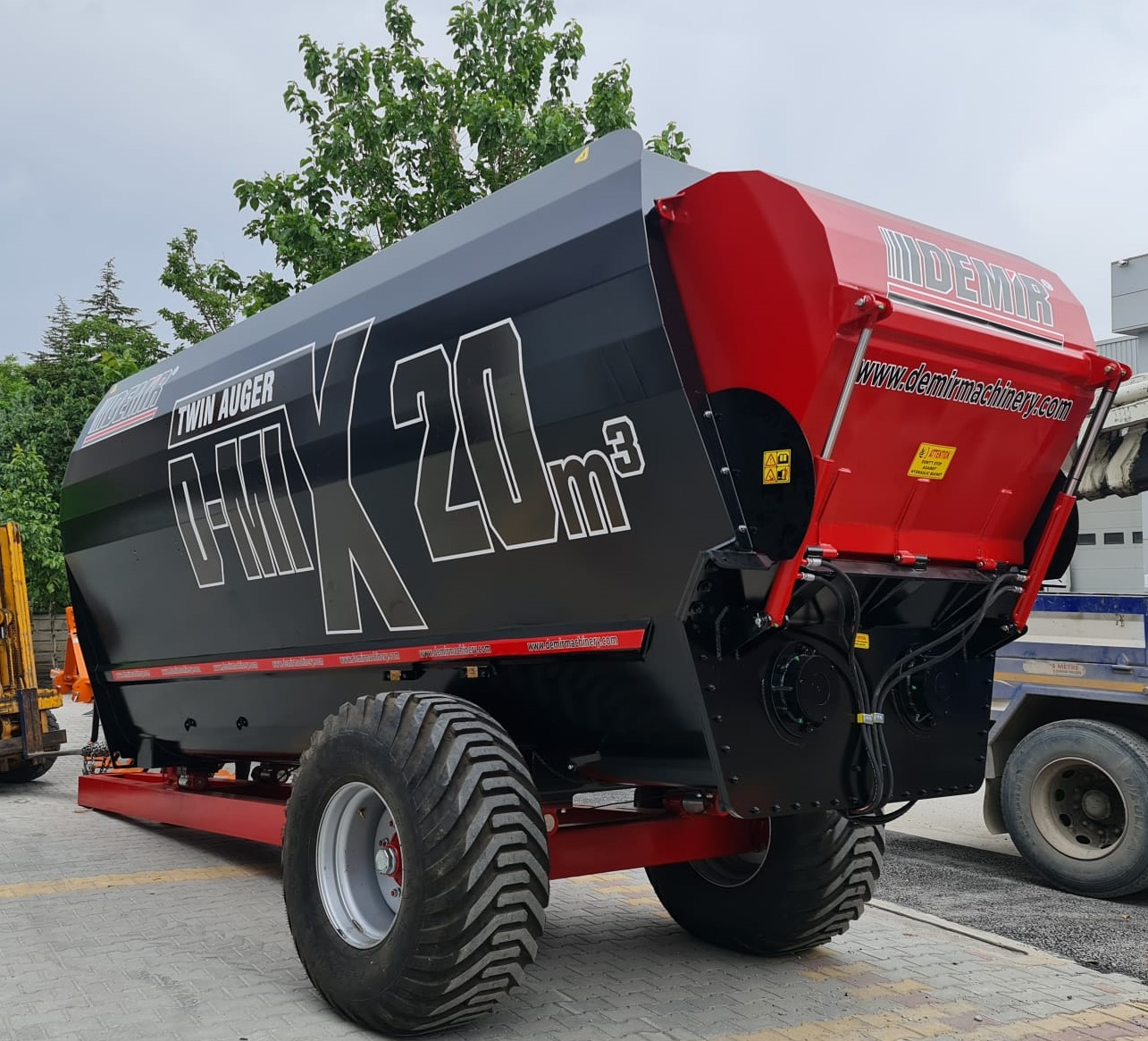

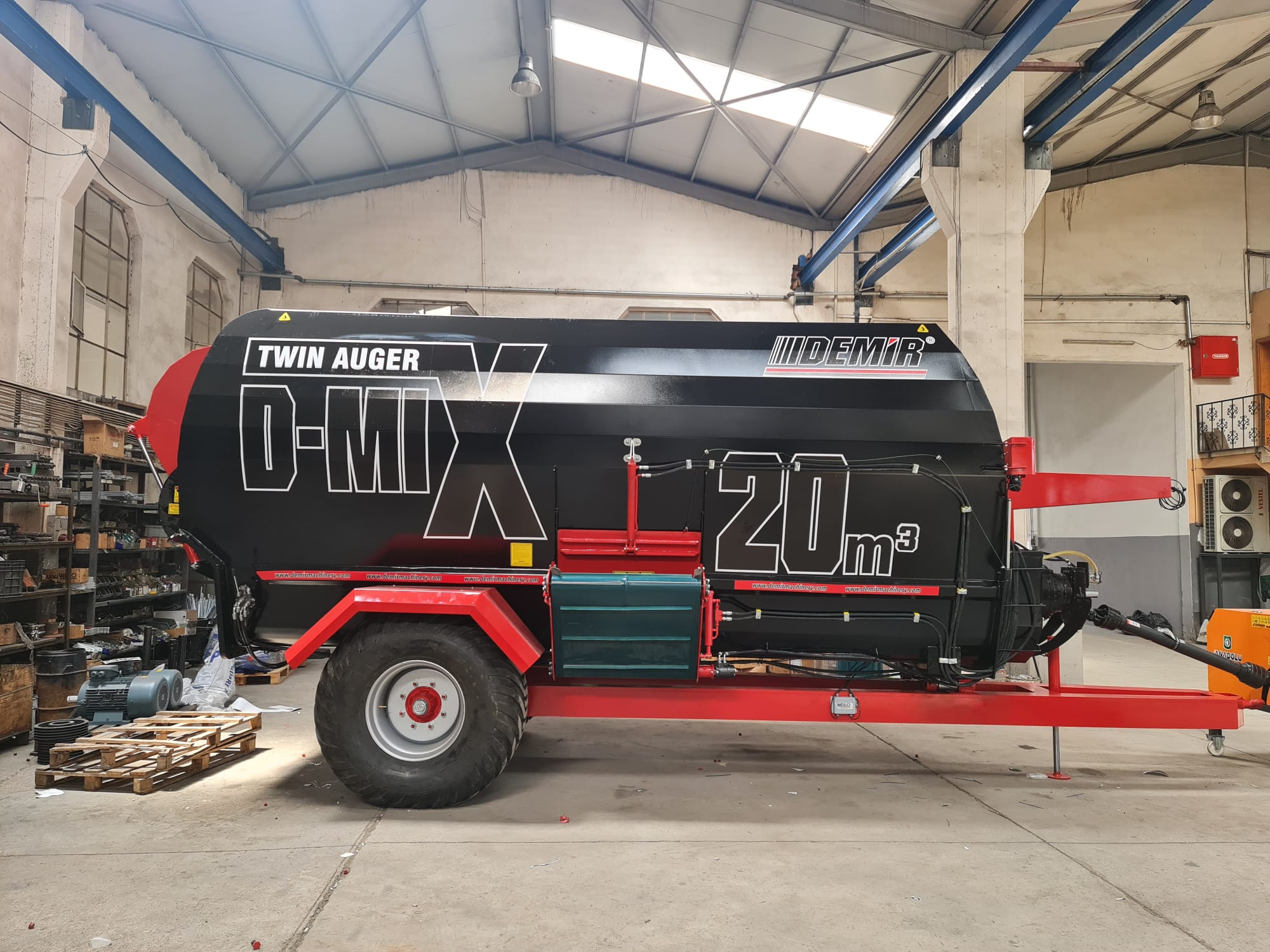

Feed mixer and distributor wagon is one of the indispensable equipments for farmers and small, medium big sized barns. They are important for mixing feeds homogeneously and composing mixing (tmr) with target quality. Mixer wagons system crushes, cuts and mixes the round/square bales in a short time with all ingredients and distribute the feed in the barns.
Discharge band provides homogeneous spread of mixed feed by hydraulic control system.
Provides fuel saving thanks to its double auger and heat treated special blades.
With the hydraulic loading bucket, the material can be easily placed in machine by hydraulic control system.
Ration content is one of the most important factors for preparing the feed. The weighing system is required for accurate adjustment of the ration.
Hydraulic controller provides the control of loading bucket, discharge cover, discharge band and mechanic jack.
With the high quality and long lasting special gearbox, the power requirement is kept minimum and feed mixer has a longer life.
When the machine is not connected to the tractor, the front of the machine can be supported with this mechanic jack by hydraulic control system.
Machine has strong steel chassis. The dimensions and the properties of the tyres are determined according to the weight, size, axle spacing and working areas of mixer feeders.
